Description

Truck Stop Africa Aluminium 45,000L Oil Tanker

Delivery time	30-45 days after receiving deposit and customer confirming drawings
Date of Expiry	Valid for 60 days from January 16, 2019
Payment	TT, 30% as deposit; 70% balance before shipment



	Main Technical Specification with ADR standard
General	The tanker trailer is designed for stevedoring and transporting fuel. Working pressure 75psi, testing pressure 1.5 times  working pressure.
Material	Aluminium steel 5182, tanker body: 6mm, end plate: 7mm
Loading type	Bottom loading
Transport Medium	Petrol, diesel, ethyl alcohol, methanol, octane improver.
Dimension(mm)	External (length x width x height)	12,200*2,500*3,700
	Fifth wheel height (unloaded)	50mm or 90mm
	Kingpin height	According to client’s requirement
	Kingpin setting (kingpin to front end)	1450mm
	Wheel distance (kingpin to second axle)	8100mm
	Axle space	1200mm
Weight(kg)	Tare weight (tolerance +/-3%)	8,000 kgs
	Max Payload	42,000 kgs
	Max gross weigh	49,000 kgs
	Max kingpin payload (distributed payload)	14,790 kgs
	Max axle payload (distributed payload)	34,510 kgs
Tanker Body	Capacity	45,000L
	Compartments	6 compartments
	Tank shape	Oval Shape
	Tank material	Aluminum Alloy 5182, 6 mm
	Ends	Aluminum Alloy 5182, 7 mm
	Compartment Plate	Aluminum Alloy 5182, 5mm
Price addition  and deduction	For 42,000 Liters deduct USD $1,200 from the price.   For 36,000 Liters deduct USD$1,800 from the price.
	Reduce from 6 compartments to 4 compartments and deduct USD$2,400 from the price.



Tanker Accessories and Fittings:

Manhole:

500mm (20”) diameter manholes with manhole cover, 250mm (10”) fill/vent, pressure vacuum  vent included in manhole assembly.  Manhole protection cover is optional.

Discharge System ,

2. Internal Valve: CIVACON EURO 100-1 4” pneumatic internal valve at the bottom of each compartment.
3. 4” Aluminium pipe line, outlet located on the bottom side center of the tanker.
4. The API adaptor will be fitted at a height of between 705mm and 850mm.

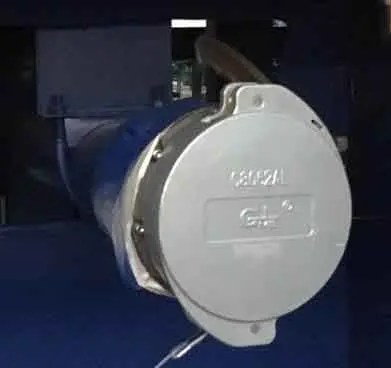

5. API adaptor with CIVACON 875C aluminium dust cap on the right side of tanker (Horizon installation).
6. All outlets are enclosed in an aluminium steel box fitted with a stainless-steel lock.



Running System:

Axle & Suspension:

Fuwa brand, Square axle tube, 10 holes, 3×13 tons axle,

German leaf suspension



Tire & Rim:

385/65R22.5, 6+1pcs; steel rims

Braking System:

WABCO RE6 relay valve; T30/30 spring brake chamber; 40L air tanks; with EBS system, Air tank and tubes are made in China.

Landing Gear:

“JOST” brand two-speed, manually operated,

Heavy duty landing gear

King Pin:

“JOST”, 50mm or 90mm, bolt-on type.

Electrical System:

ADR approved lightning and electrical system;

24 volt lighting system with LED lights at both sides and rear of the tanker. Harness: oil and vapor proof cable;

Side clearance/marker light: five PCS each side, amber;

Tail light (includes stop light, rear indicator lights and marker light): one pc/side, red/ amber;

Registration plate light: one pc, white.

Accessories:

1. Ladder: A detachable ladder made of carbon steel is fixed at the rear or front of the tanker.
2. Walkway: Anti-skid walkway along the entire length of the tanker .
3. Fire Extinguisher Bracket: Two brackets are fixed on the left and right side of the trailer made of steel .
4. Fire Extinguisher: Two Pieces 8KG BC class.
5. Fender: Mudguard with mud flaps .
6. Spare Tire Carrier: One set per trailer.
7. Tool Box: Made of carbon steel. One per trailer, fixed on the right side with a lock.
8. Side guard: Complete with a tool box and API box to avoid pedestrians/cyclists being pulled under the trailer.
9. Drainage hose: Made of steel and equipped with PVC hose, on the rear of the tank.
