Sinotruk 5 ton Refrigerator RHD Exw China

Sinotruk 5 ton Refrigerator RHD Exw China

Current Stock

$32,900.00

Type: Refrigerator Truck 340 HP

Brand: Howo (Sinotruk)

SKU: 9567 Category:
Extra Features
  • Secure Payments
  • Satisfaction Guarantee
  • Worldwide Shipping

Sinotruk 5 ton Refrigerator

[24/12/2021]

Type: Refrigerator Truck
Brand: Howo (Sinotruk)

Price:USD$32,900.00 /ONE UNIT FOB PORT QINGDAO CHINA
Overall dimension: 50m3

Optional:

+USD320. side door
+USD210.Escalator toolbox
+USD480.Stainless steel slot

Refrigerated Truck Specification
General Chassis Brand SINOTRUK
Overall Dimension Appro. 7542*2400*2700 (mm)
Max Axle Loading Weight Appro. 5000 (kg)
Truck Tare Weight Appro. 4000 (kg)
Drive Type 4×2, Right Hand Drive with power assisted steering
Drive Speed ‚Č•90Km/h
Cab Type Single row cab, forward control type, all welded steel cab of tilt type, rear mechanical cab suspension, adjustable driver seat
No of Seats 2 persons allowed, including driver, with safety belts
Number of Doors 2
Air Conditional With air conditional
Electric System 24V
Audio System FM/AM radio
Engine Brand Cummins
Model ISF3.8S3154
Emission Standard EURO III
Fuel Type Diesel fuel
Air Intake Form In-line 4 cylinders, water cooling, turbocharging and intercooling
Cylinder Nos 4
Exhaust (ml) 3760
Max. Output Power (kw) 85
Max output power (hp) 154
Max output power/rotate speed (hp /rpm) 154/1900
Max torque/rotate speed (N.m/rpm) 1200-1900
Bore x Stroke 102*115m
Gear Box Model WLY653
Type Manual
Forward Speeds 6
Rear Speeds 1
Bridge Axle Nos 2
Front axle loading capacity (kg) 2700
Rear axle loading capacity (kg) 7200
Suspension Type 11/9+7CH
Electric System Voltage 24V
Braking System Full air brake system, split pneumatic circuit , parking spring brake acting on rear axles, exhaust brake
Tire Type 8.25R16
Nos Total 7 no, including 1 spare tire

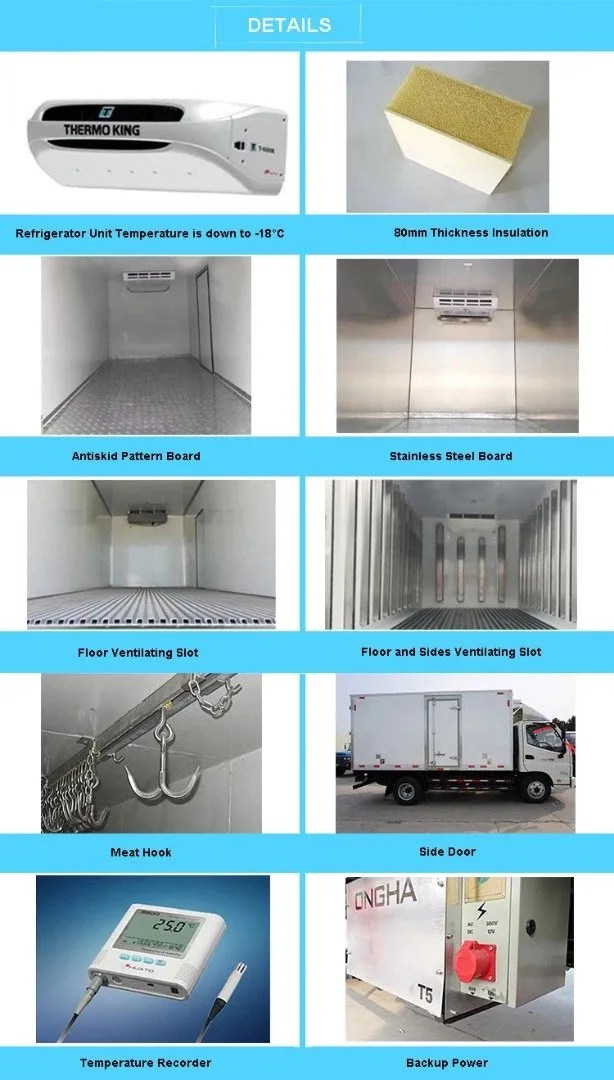

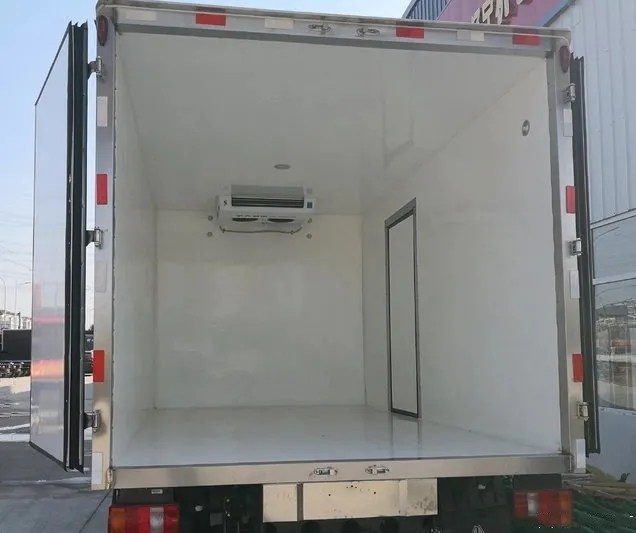

Refrigeration Van Box Specification
Van box dimension(mm) Appro. 5200*2380*2400
Material of van box Outside: Glass fiber reinforced plastics (GFRP)
Inside: Polyurethane Foam
Insulation thickness 2.2mm GFRP and 80mm Polyurethane Foam
Refrigeration Units Brand Carrier or Thermo King
Type Non-independent Refrigeration Unit
Working temperature -18¬įC~0¬įC
Door Number of Doors optional
Opening Type Rear door opening
