Description

LAG 45000 Belgium Fuel Tanker Trailer

Lead time 3 months
CBM 115m3

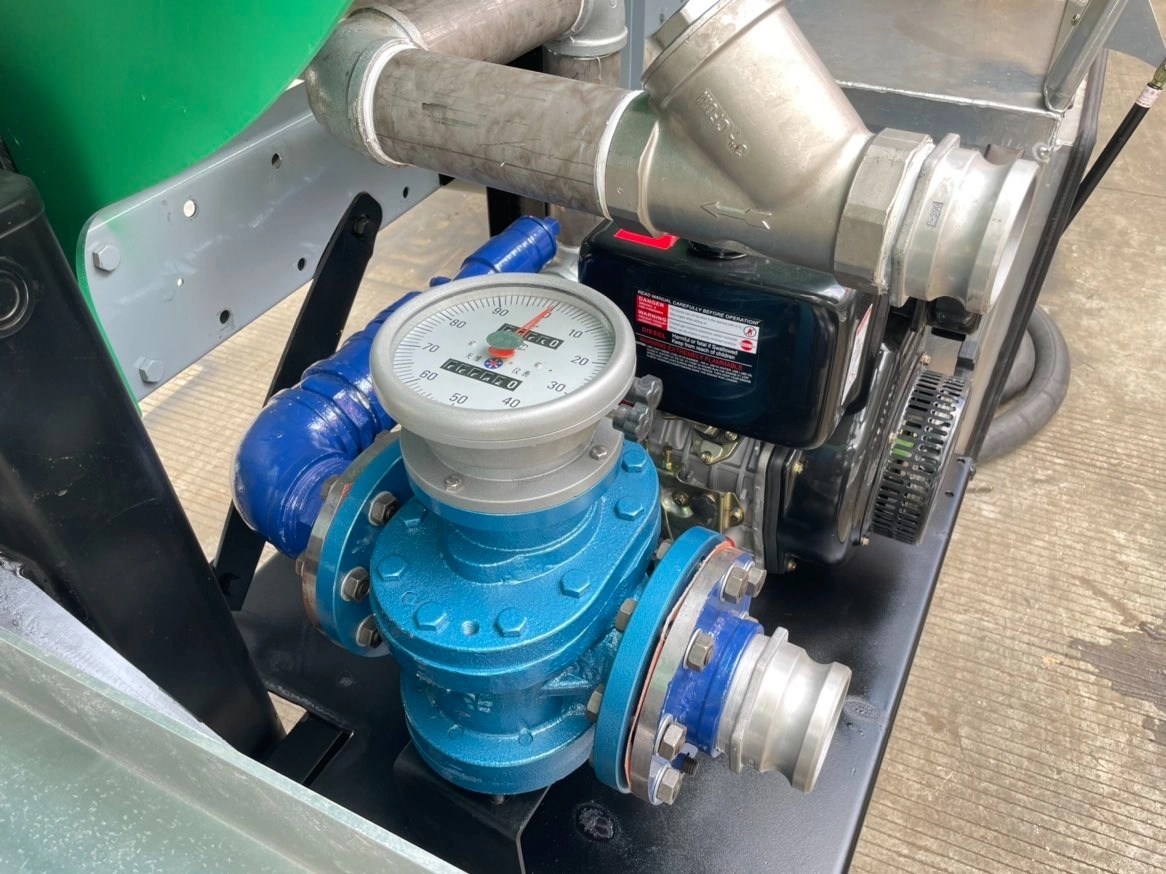

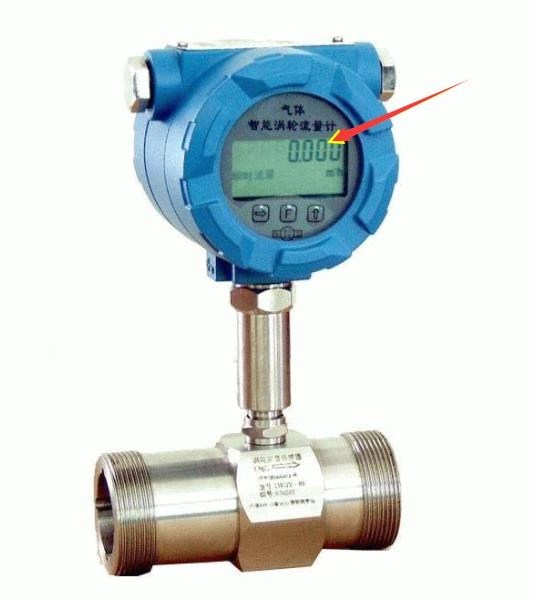

Generator Honda pump and meters optional extra	+$2,800.00
Vapour Recovery System Optional Extra	+$2,800.00
Artwork and Logo installation Optional Extra	+$2,500.00
Front Mudguards Optional Extra	Free
Fuel Sampler System Optional Extra	Free
Manifold Optional Extra	$750



Production time	40 days from receiving deposit and client’s confirmation of design drawings
Date of Expiry	Valid for 30 days
Payment	TT, 30% as deposit; 70% balance pre shipment



Main Technical Specification with ADR standard
Loading type	Top loading/bottom unloading
Transport Medium	Petrol, diesel, ethyl alcohol, methanol, octane improver.
Dimension(m m)	External (length x width x height)	12,500*2,500*3,700
	Fifth wheel height (unload)	50mm or 90mm
	Kingpin height	According to client’s horse dimensions
	Axle space	1310
Weight(kg)	Tare weight (tolerance +/-3%)	6,765
	Max Payload	37,575(45,000liters@SG=0.835)
	Gross weight	44,175
	Max kingpin payload (distributed payload)	17,670
	Max axle payload (distributed payload)	26,505
Tanker Body	Capacity	45,000 liters
	Compartments	6
	Tank shape	Oval Shape
	Tank material	Aluminium Alloy 5083, 5.2 mm
	Ends	Aluminium Alloy 5083, 5.2 mm



Tanker Accessories and Fittings:

Manhole:

500 mm (20”) diameter manholes with manhole cover, 250 mm (10”) fill/vent, pressure vacuum vent included in manhole assembly. Protection cover for manhole is provided as optional. Manhole & Valves by Henghe/Oumi Te(China best brand),

Discharge System

1. Internal Valve: 100-1 4” pneumatic internal valve on the bottom of each compartment.
2. 4” aluminium pipe line, outlet located at the middle of tanker.

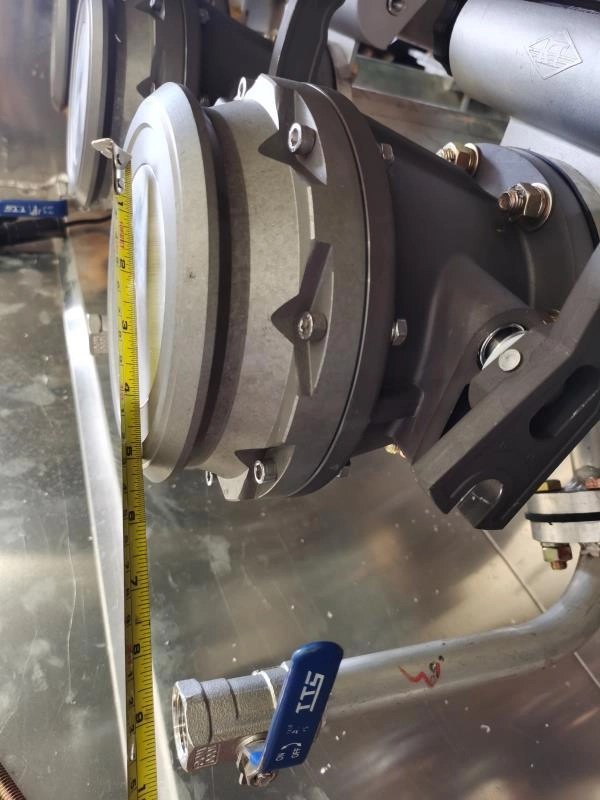

3. The API adaptors are to be fitted at a height of between 705mm and 850mm.

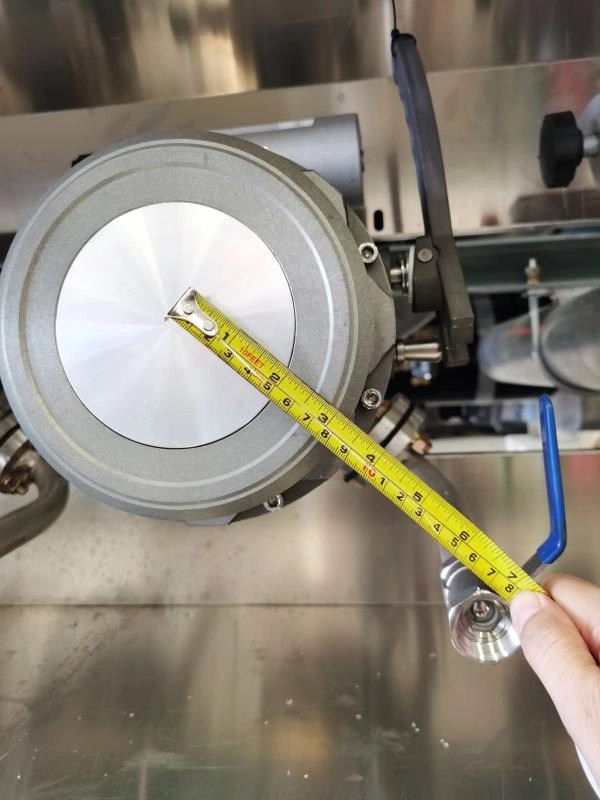

4. API adaptors with HENGHE aluminium dust cap on the right side of tanker(Horizon installation).

All outlets are situated in the aluminium steel box with a stainless steel lock.

Running System:

Axle & Suspension:

BPW brand, Square axle tube,10 holes,3×13 tons axle , with 1 lift axle, Air suspension, Firestone brand



Tire & Rim:

385/65R22.5,6pcs, Triangle brand; aluminium  rim



Braking System:

WABCO RE6 relay valve; T30/30 spring brake chamber; 40L air tanks; with ABS system, Air tank and tubes are made in China.



Landing Gear:

JOST brand two-speed, manual operating, Heavy duty landing gear



King Pin:

“JOST”, 50mm or 90mm, bolt-in type.



Electrical System:

ADR approved lightning and electric system;

24 volt lighting system with LED lights at both sides and rear of the tanker. Harness: oil and vapor proof cable;

Side clearance/marker light: five PCS each side, amber;

Tail light (include stop light, rear turn light and marker light): one pc/side, red/ amber;

License light: one pc, white.

Accessories:

1. Ladder: A detachable ladder is equipped in the rear or head of the tanker made of carbon steel.
2. Walkway: Anti‐skid walkway along the entire length of the tanker
3. Fire Extinguisher Bracket: Two brackets are fixed on the left and right side of the trailer made of steel
4. Fire Extinguisher: Two Pieces 8KG BC class
5. Fender: Mudguard with mud flaps
6. Spare Tire Carrier: Equipped one set per trailer
7. Tool Box: Equipped one set per trailer, on the right side made of carbon steel with lock
8. Side guard: complete with tool box API box to avoid rider going under the trailer Drainage hose: Made of steel and equipped with PVC hose, on rear tank.
